Collection Tasks

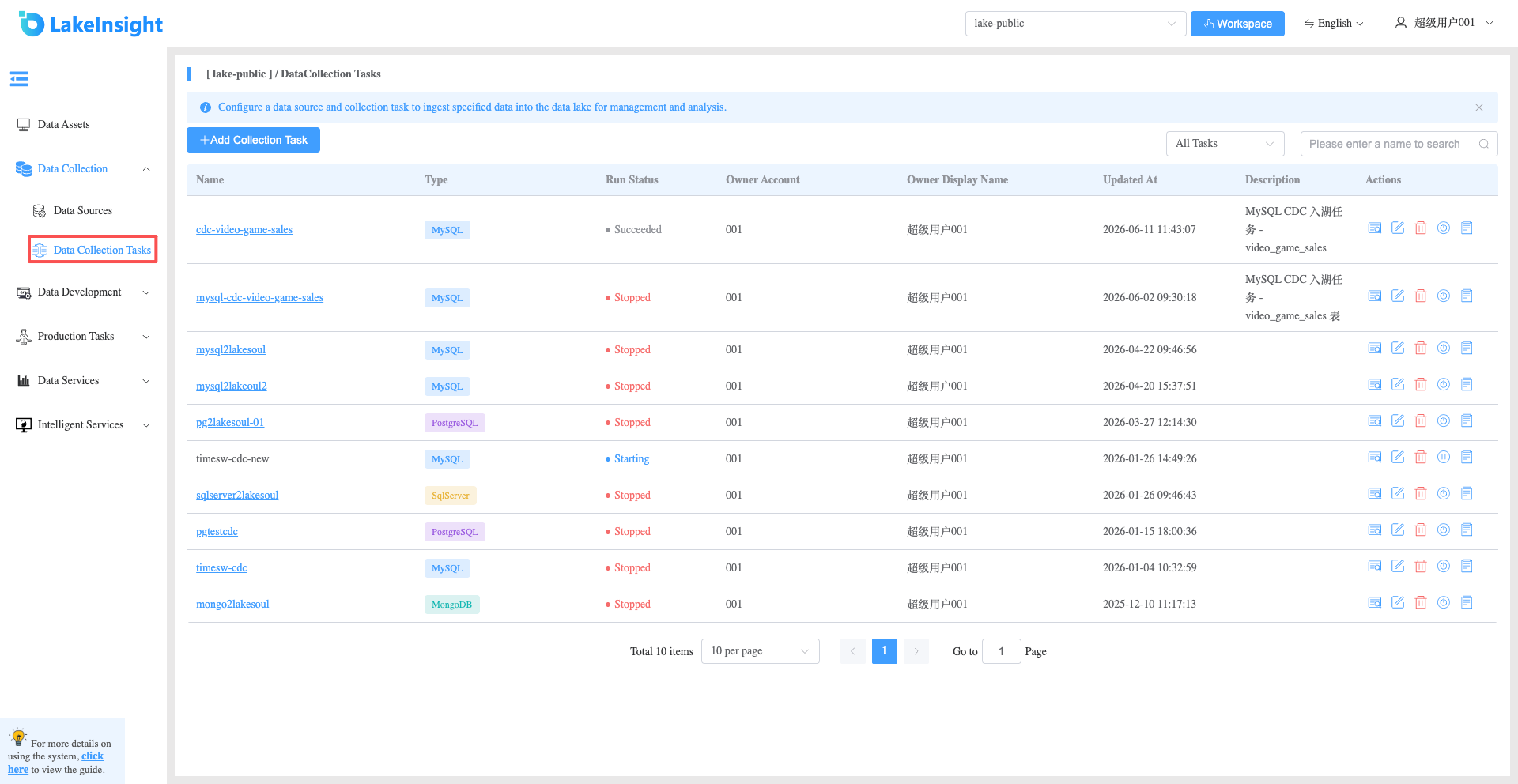

Click Data Collection > Collection Tasks in the left sidebar to view the list of collection tasks created under the current workspace.

Create Collection Task

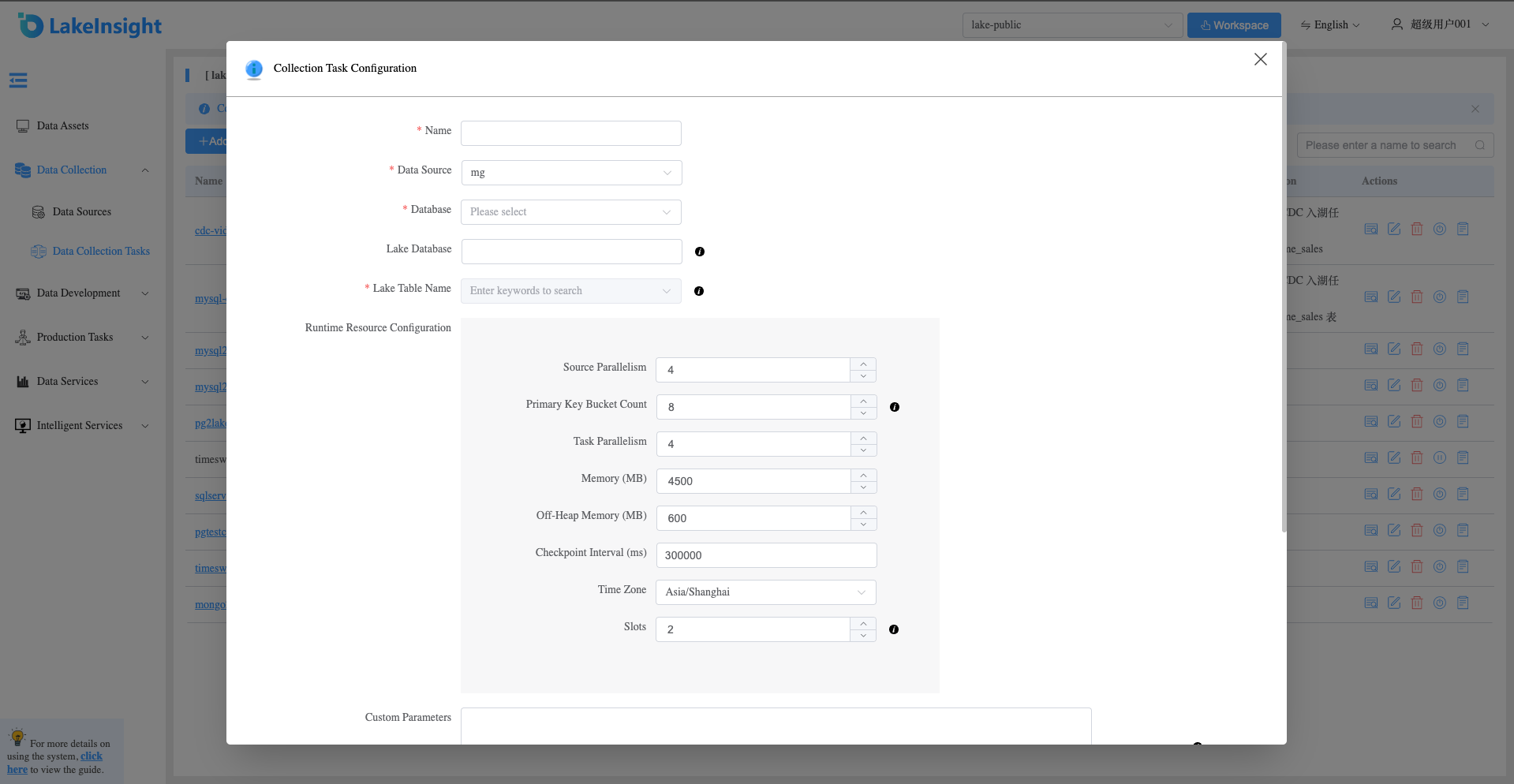

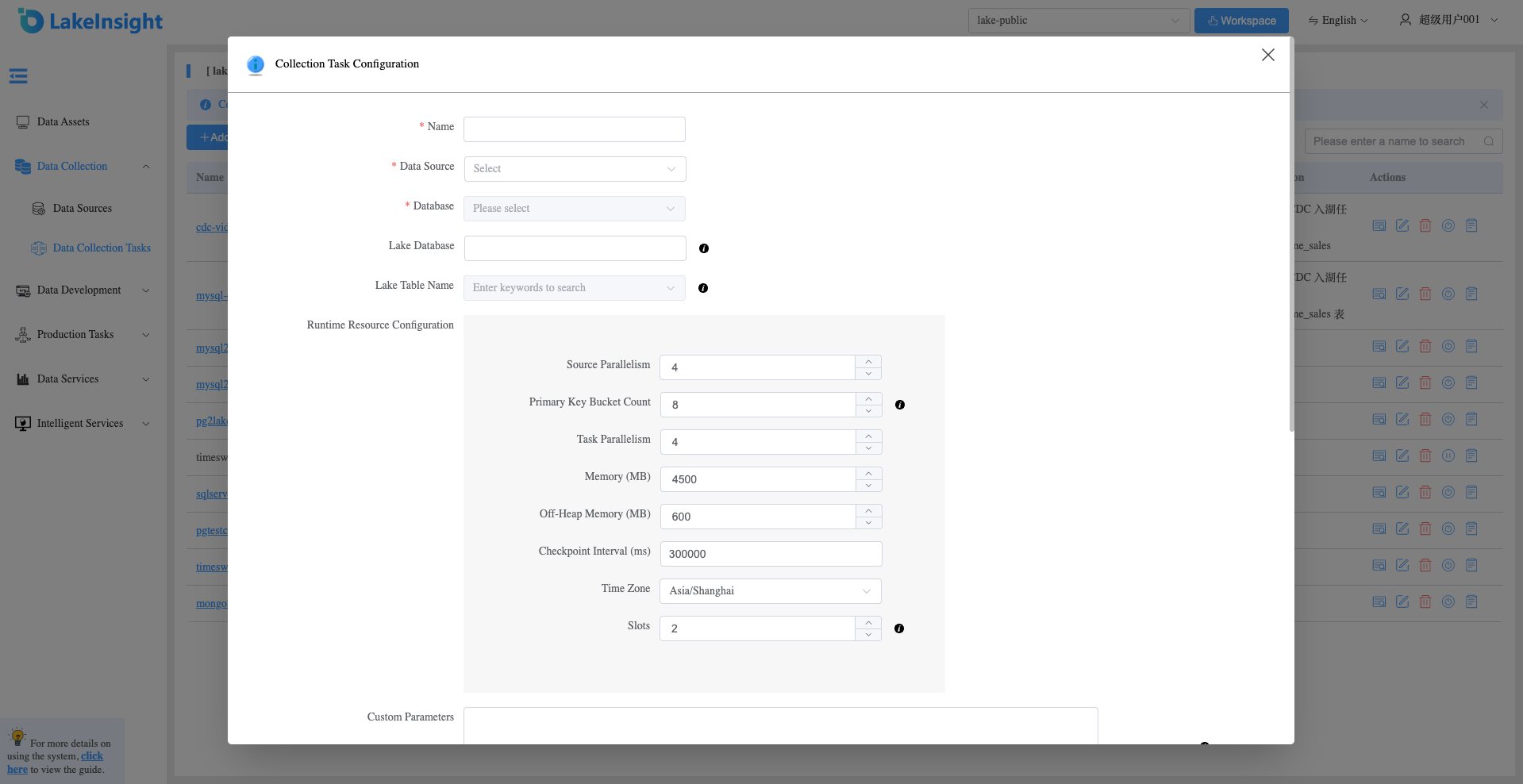

Click the Add Collection Task button and fill in the form fields from top to bottom: enter the collection task name, select a data source (different data sources display different configuration forms), and provide other required resource information. Click Create to add a new collection task.

Task Parameter Description:

PostgreSQL Data Ingestion Notes:

Version Restrictions
Currently supports synchronizing PostgreSQL versions 9.6, 10, 11, 12, 13, 14, 15, and 16. You can check the PostgreSQL version by running select version().
Enable Logical Decoding
- Ensure wal_level is set to logical; modify postgresql.conf and restart the database.
- Ensure the replica identity of tables to be synchronized is set to FULL.
  Replica identity is a PostgreSQL table-level setting that determines whether logical decoding includes old values of affected columns for INSERT and UPDATE events. See REPLICA IDENTITY for details.
  - Ensure max_wal_senders and max_replication_slots parameter values exceed the current number of used replication slots plus the slots required by the Flink job.
  - Ensure the account has SUPERUSER privileges or both LOGIN and REPLICATION privileges, along with SELECT permission on subscribed tables for full data queries.
  - You can view and modify the relevant parameters using the following SQL code:
    -- View replica identity. SELECT CASE relreplident WHEN 'd' THEN 'default' WHEN 'n' THEN 'nothing' WHEN 'f' THEN 'full' WHEN 'i' THEN 'index' END AS replica_identity FROM pg_class WHERE oid = 'mytablename'::regclass; -- Modify replica identity. ALTER TABLE mytablename REPLICA IDENTITY FULL;
- Create an account with sync privileges
  The data sync account requires REPLICATION and LOGIN privileges, as well as SELECT permission on the tables to be synchronized.
```
CREATE ROLE <replication_user> REPLICATION LOGIN;

GRANT SELECT ON <table_name> TO <name>;
```
Data Sync Plugin

PostgreSQL 10 and above have the pgoutput sync plugin installed by default. For other versions or to install other sync plugins, see Installing Logical Decoding Plugins.

If you use pgoutput as the sync tool, ensure the account is the owner of the tables to be synchronized. Follow these steps to ensure the sync account is the table owner:

-- 1. Create a sync group.
CREATE ROLE <replication_group>;

-- 2. Add the original table owner to the sync group.
GRANT REPLICATION_GROUP TO <original_owner>;

-- 3. Add the sync account to the sync group.
GRANT REPLICATION_GROUP TO <replication_user>;

-- 4. Transfer relevant permissions to the sync group.
ALTER TABLE <table_name> OWNER TO REPLICATION_GROUP;

Note:

At this point, the sync account is only the owner of individual tables, so set debezium.publication.autocreate.mode to filtered in the WITH parameters. If setting permissions for each table is too cumbersome, you can directly grant the pg_monitor privilege to the sync account.

GRANT pg_monitor TO <replication_user>;

Kafka Data Ingestion Parameters:

Parameter	Description	Required	Notes
Name	Task name	Required	Name must start and end with lowercase letters or digits; can only contain lowercase letters, digits, "-", and "."
Data Source	Configured Kafka cluster list	Required	Data source configuration currently requires backend operation
Target Database	Target LakeSoul database name	Optional	If not specified, creates databases matching source table databases; if specified, creates the specified database
Topic Name Type	Whether topic is a regex	Required	Normal: topic is a full name, multiple topics can be selected; Regex: one task reads multiple topics by regex. Note: for regex, Kafka data format must be consistent — all Avro or all Debezium-format strings
Topic Name	Topic name	Required	For Normal type: dropdown selection; for Regex type: enter regex string
Kafka Data Type	Data format in topic	Required	String: Debezium-format string data; Avro: Avro-format data requiring a Schema Registry service
Schema Registry URL	Registry service address	Required when data type is Avro	Example: http://ip:8081 (must include http://). Planned to be configured in data source info — won't need manual entry later
Consumption Mode	Starting position for consuming Kafka data	Required	Default: start from latest (if no real-time data, select consume from earliest offset)
Column Deletion Behavior	Strategy when source table schema drops a column	Optional	Retain column: ingested data can still query the column, but data is null after schema deletion; Drop column: column info is no longer queryable
Max Records Per Fetch	Max records read from Kafka per fetch	Required	Default: 500
Source Parallelism	Flink source parallelism	Required
Sink Parallelism	Flink sink parallelism	Required
Checkpoint	Flink checkpoint interval	Required	Default: 600000ms; ingested data becomes queryable after each checkpoint
Description	Task description	Optional

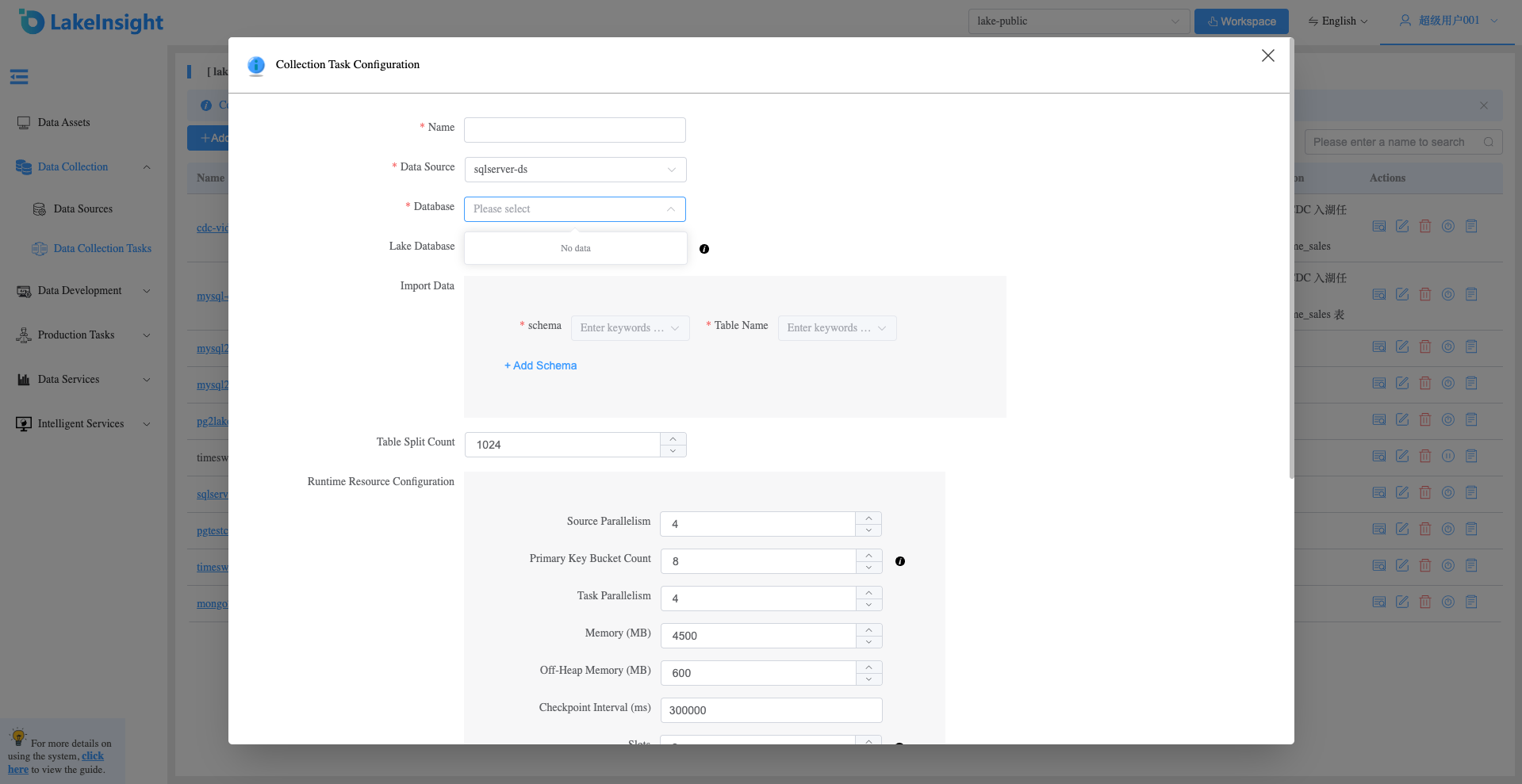

SQLServer Data Ingestion Notes:

SQLServer Configuration:

Enable SQLServer Agent

If Agent is not running:

CDC cannot extract changes from the log
CDC change tables will not update
Flink CDC / Debezium cannot get incremental data
Only snapshot may work, but incremental data never arrives

Check if Agent is running

EXEC xp_servicecontrol 'querystate',N'SQLServerAgent';
go

Enable CDC for database

USE master;
GO
EXEC sys.sp_cdc_enable_db;
GO

Enable CDC for tables to collect

USE MyDB;
GO

EXEC sys.sp_cdc_enable_table
    @source_schema     = N'dbo',        -- Schema of the source table to enable CDC for
    @source_name       = N'MyTable',    -- Name of the source table to enable CDC for
    @role_name         = N'MyRole',     -- Database role MyRole granted SELECT on change tables
                                         -- If NULL, only sysadmin or db_owner members can access CDC data
    @filegroup_name    = N'MyDB_CT',    -- Filegroup for CDC change data (must already exist)
                                         -- It is recommended not to place change tables in the same filegroup as source tables
    @supports_net_changes = 0           -- 0 = capture all change details without net changes
GO
